Uncompressed 4K60 over one Cat cable.

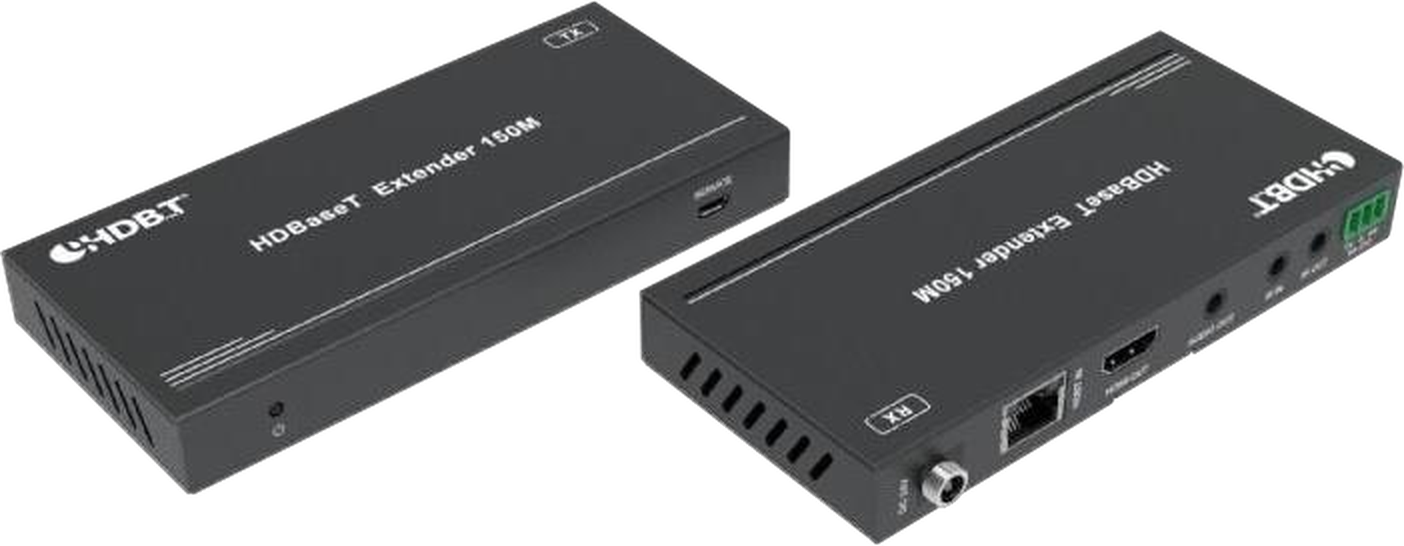

A matched HDBaseT transmitter and receiver that carry uncompressed 4K60 over a single Cat 5e/6 run — up to 120 m at 4K and 150 m at 1080p — with bi-directional IR, RS-232, CEC and 24 V PoC so one end powers the other.
| Type | HDBaseT extender set (TX + RX) |
|---|---|
| HDMI | HDMI 2.0b |
| HDCP | HDCP 2.2 |
| Bandwidth | 18 Gbps |
| Max resolution | 4K@60Hz 4:4:4 |
| Reach | 120 m @ 4K / 150 m @ 1080p |
| Link cable | Cat 5e / 6 |
| Control | Bi-directional IR, RS-232, CEC |
| Power | 24 V PoC (one end feeds the other) |
Tell us the sources, screens and distances in your install — we’ll confirm the right fit and send pricing.
