Any of eight 4K60 sources to any of eight screens.

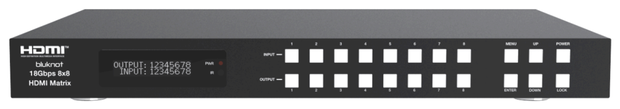

A true 8×8 HDMI matrix that routes any of eight uncompressed 4K60 sources to any of eight displays, with audio de-embed, per-output 4K→1080P scaling, ARC and smart EDID. Driven from the front panel, IR, RS-232, LAN or the built-in web GUI.
| Matrix | 8 × 8 |
|---|---|
| HDMI | HDMI 2.0b |
| HDCP | HDCP 2.2 and 1.4 |
| Video bandwidth | 18 Gbps |
| Max resolution | Up to 4K2K@50/60Hz (4:4:4) |
| Down scaler | 4K→1080P, each output |
| HDR | HDR10, HDR10+, Dolby Vision, HLG |
| Audio de-embed | Analog + Coax |
| Control | Panel, IR, RS-232, LAN, Web GUI |
| Display | Front panel OLED |
| Dimensions | 440 × 200 × 44.5 mm |
| Power | DC 12V / 5A, 43 W |
Tell us the sources, screens and distances in your install — we’ll confirm the right fit and send pricing.
