One source to two screens, with audio extracted.

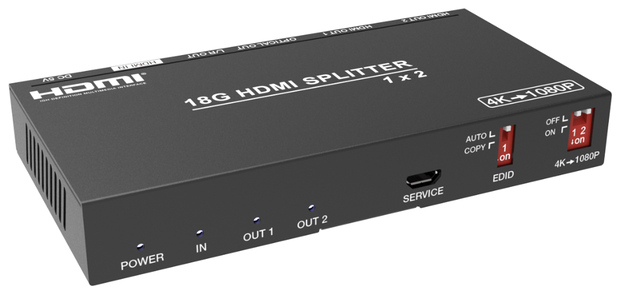

An 18 Gbps HDMI 1×2 splitter that sends one source to two displays at up to 4K2K@50/60Hz. Audio extracts to optical and analog output, each output has a bypass / 4K→1080P downscaler dial, and EDID is selectable COPY or AUTO.
| Type | HDMI 1×2 splitter |
|---|---|
| HDMI | HDMI 2.0b |
| HDCP | HDCP 2.2 and 1.4 |
| Bandwidth | 18 Gbps |
| Max resolution | 4K2K@50/60Hz (4:4:4) |
| Down scaler | 4K→1080P, per output |
| Audio extract | Optical + Analog L/R |
| EDID | COPY / AUTO (dial switch) |
| Dimensions | 120 × 62.5 × 14 mm |
| Weight | 166 g |
| Power | DC 5V / 1A, 2.8 W |
| Operating temp. | -10 – 50 °C |
Tell us the sources, screens and distances in your install — we’ll confirm the right fit and send pricing.
