One uncompressed 4K60 source to sixteen screens.

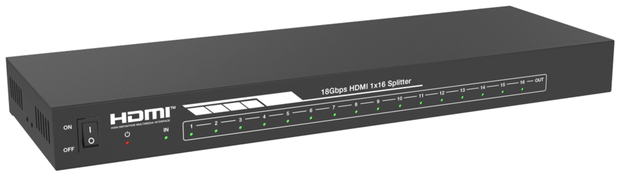

A 1×16 HDMI distribution amplifier that feeds one uncompressed 4K60 4:4:4 source to sixteen displays at once. 18 Gbps of bandwidth, HDR through Dolby Vision, and smart EDID so every screen sees a format it can show.
| Distribution | 1 in × 16 out |
|---|---|
| HDMI | HDMI 2.0b |
| HDCP | HDCP 2.2 / 1.x |
| Bandwidth | 594 MHz / 18 Gbps |
| Max resolution | 4K2K@50/60Hz (4:4:4) |
| HDR | HDR10+, HLG, Dolby Vision |
| Colour depth | up to 12-bit |
| EDID | Smart management + DIP |
| Housing | Metal enclosure, black |
| Dimensions | 300 × 100 × 28 mm |
| Weight | 900 g |
| Power | DC 12V / 2.5A, 12 W |
| Operating temp. | 0 – 40 °C |
Tell us the sources, screens and distances in your install — we’ll confirm the right fit and send pricing.
