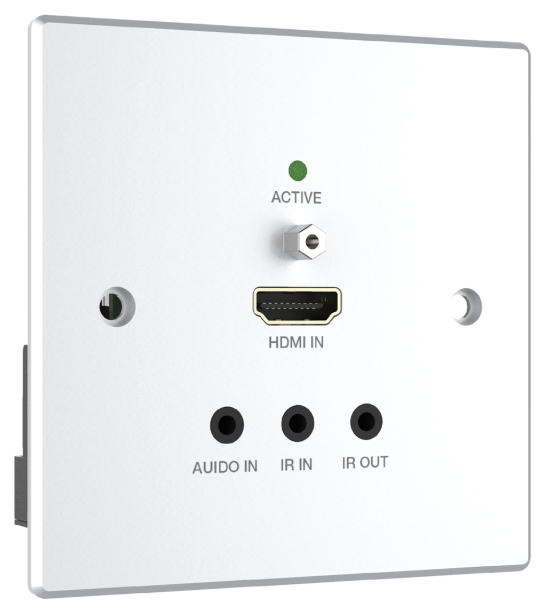

A wall-plate input, one cable to the display.
A wall-plate transmitter in a standard 86×86 mm box takes HDMI and analogue audio and sends them over a single CAT6/6a run — up to 70 m at 1080p, 40 m at 4K — to the matching receiver. Two-way IR, RS-232, EDID and 24 V PoC included.
| Type | HDBaseT wall-plate TX + RX |
|---|---|
| HDMI | HDMI 2.0b |
| HDCP | HDCP 2.2 |
| Bandwidth | 18 Gbps |
| Max resolution | 4K@60Hz 4:4:4 |
| Reach | 70 m @ 1080p / 40 m @ 4K |
| Audio | Embed (TX) / de-embed (RX) |
| Control | 2-way IR, RS-232, EDID |
| Colour | White front, black rear |
| Plate size | 86 × 86 × 38 mm |
| Weight | 185 g |
| Power | DC 24V / 1A, PoC |
| Consumption | 9 W (PoC) |
Tell us the sources, screens and distances in your install — we’ll confirm the right fit and send pricing.
